Partner Highlights
Architects of Continuity™
As the Architects of Continuity™, Vertiv combines hardware, software, analytics, and services to support the growing demands of cloud computing, AI, and edge technologies. Their portfolio includes advanced power management, thermal solutions, integrated racks and IT infrastructure, tailored for hyperscale, enterprise and edge environments.
Showcase Products:
Reliable UPS that lasts
Scalable UPS for more autonomy time
All-in-one power + cooling
Transfer switch, Environment Monitor
Contact us to work thru options

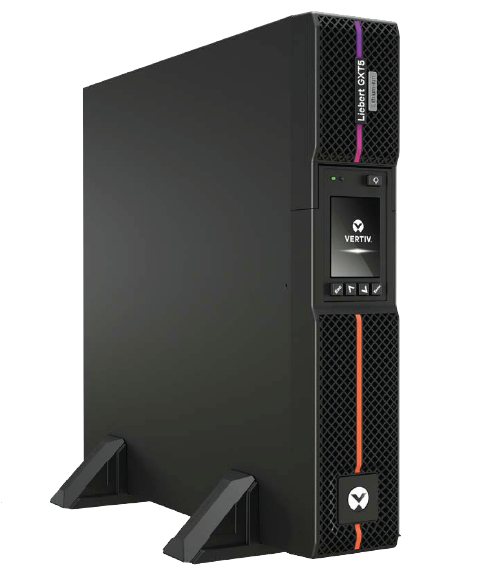

Type: Single-phase line-interactive UPS
Capacity: 1.5kVA to 3kVA
Form Factor: 2U Rack/Tower convertible
Key Features:
High efficiency: Up to 98% in line mode; 0.9 output power factorvertiv
Lithium-ion battery technology:
Up to 10 years usable life
10x more discharge cycles than VRLA
<2 hours recharge time
45% lighter than VRLA batteriesvertiv
Runtime: Up to 10 minutes at full load (3kVA model)
Hot-swappable, user-replaceable batteries for uninterrupted operations
Advanced monitoring and control:
Full-color LCD display
USB and optional SNMP/web management via Liebert® IntelliSlot™
Remote Emergency Power Off (EPO) support
Programmable outlets to optimize battery runtime
Wide input voltage range (166–278V) and surge protection
Warranty: 5 years for both electronics and batteries
Ideal for: Edge computing, retail, healthcare, education, government, and remote IT environments

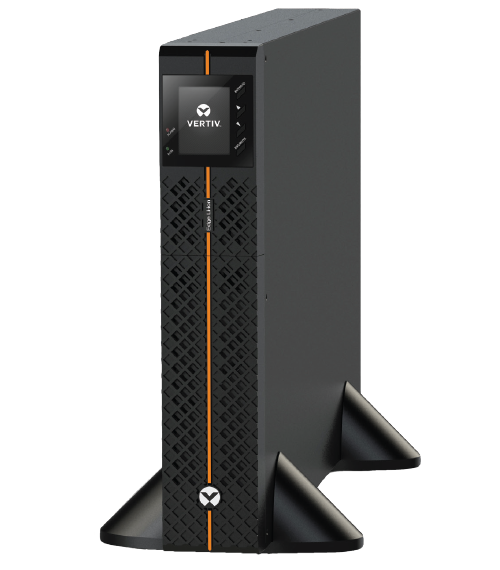

Type: Single-phase, online double conversion UPS
Capacity: 0.5kVA to 20kVA
Form Factor: Rack/Tower convertible
Key Features:
Unity power factor (1.0): Delivers full rated power to connected equipment
High efficiency:
Up to 95% in online double conversion mode
Up to 98% in Active ECO mode
Energy Star 2.0 certified
Scalable runtime: External battery cabinets with auto-detection for extended backupvertiv+1
Advanced battery management: Health status monitoring, replacement prediction, and temperature-compensated chargingvertiv
Remote management:
Full-color LCD with gravity sensing
SNMP/web support via Vertiv™ RDU101
Compatible with Vertiv™ Power Insight, LIFE™ Services, and environmental sensorsvertiv
Maintenance-friendly:
Integrated internal and external maintenance bypass
Hot-swappable, user-replaceable batteries
Programmable outlets: Optimize runtime and prioritize critical loads
Compliance: RoHS, REACH, WEEE, and ANSI surge immunity standards
Ideal for: Edge computing, healthcare, industrial, and centralized IT environments
Type: Three-phase/single-phase online double conversion UPS
Capacity: 5 to 40 kVA
Form Factor: Compact rack/tower design
Key Features:
High efficiency:
Up to 96.6% in double conversion mode
Up to 99% in ECO mode
Unity output power factor (1.0): Delivers full rated power to connected loads
Flexible output: Supports both three-phase and single-phase output (10–20 kVA models)
Advanced battery management:
Configurable battery strings (24–40 blocks)
Powerful charging for fast recovery
Compatible with lithium-ion and VRLA batteries
Wide input voltage range: 173–498V without battery discharge; reduces battery wear
Low THD: <3% input current THD; <2% output voltage THD (linear load)
Scalable and parallel-ready: Up to 6 units in parallel with optional maintenance bypass
Communication and monitoring:
USB, SNMP, Modbus, and dry contacts via Vertiv™ IntelliSlot™
Multi-lingual LCD interface
Compact footprint: Up to 30% smaller than previous generation; 3U height for 30 kVA
Ideal for: Small data centers, branch offices, edge computing, telecom, and industrial applications
Type: Three-phase online double conversion UPS
Capacity: 10 to 40 kVA
Form Factor: Compact tower design with integrated battery and bypass options
Key Features:
High efficiency: Up to 94% in double conversion mode
Unity power factor (1.0): Delivers full rated power to connected loads
Transformer-free design: Reduces footprint and improves energy efficiency
Integrated maintenance bypass: Ensures continuous operation during servicing
Flexible battery configurations: Supports standard and extended runtime options
Advanced monitoring: Network communication card, LCD interface, and remote management capabilities
Low input THD: <5% input current distortion; input power factor >0.99
Compact footprint: Optimized for small data rooms, IT closets, and edge applications
Ideal for: Small to mid-size IT systems, healthcare, retail, security, and industrial environments

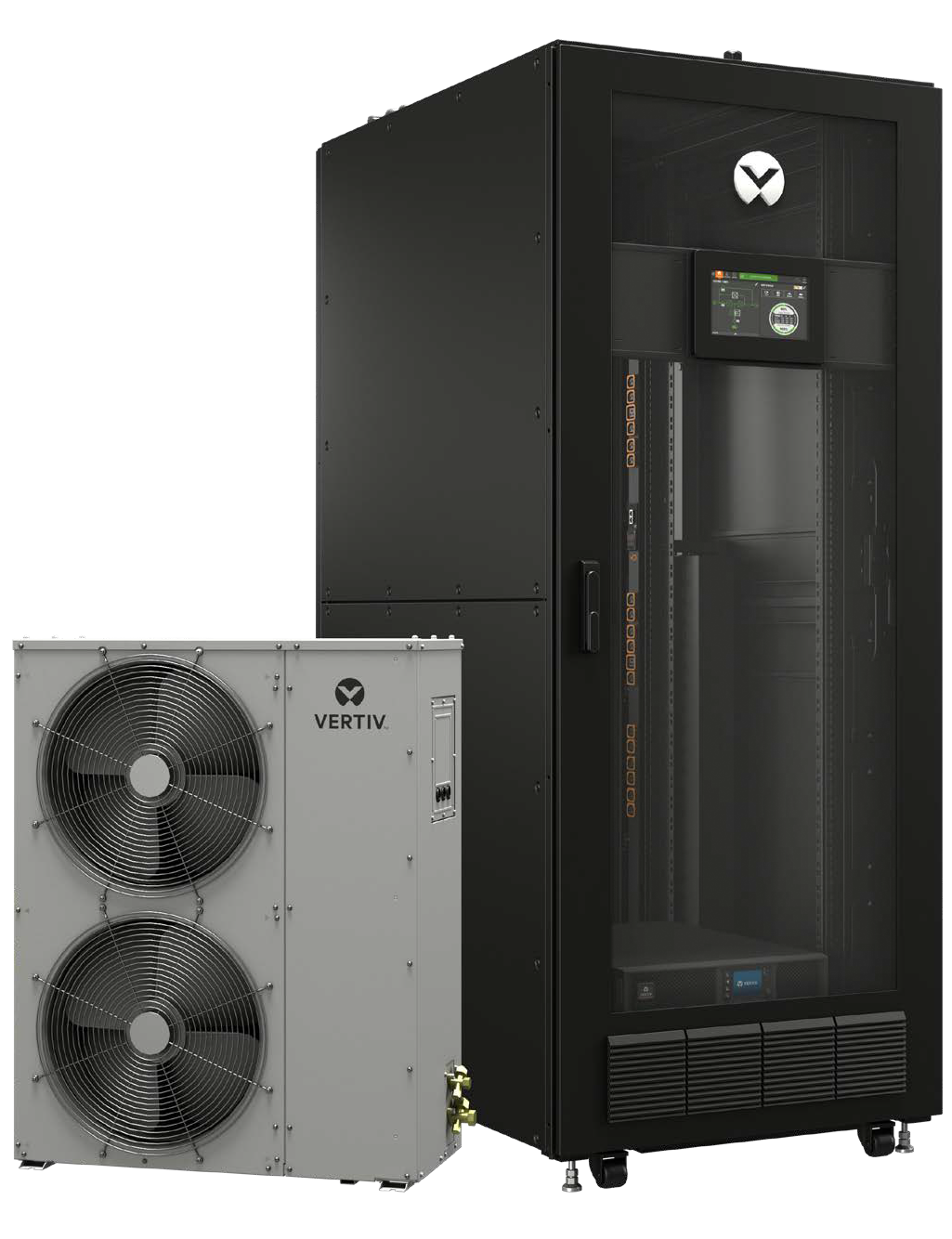

Type: Single-phase online double conversion UPS
Capacity: 5 kVA standard; scalable cooling capacity of 3.5 to 7.0 kW
Form Factor: Compact, fully enclosed rack/tower design with zero-U space for non-core IT assets
Key Features:
High efficiency and energy savings: Annualized PUE < 1.5; variable frequency compressor for part-load modulation
Integrated UPS and battery cabinet: Ensures clean power and backup for emergency fans
Advanced monitoring and control: 9-inch touch panel, remote access, SMS/email alerts
Environmental protection: Fully sealed cabinet with dust, moisture, and rodent protection; emergency cooling fans
Flexible deployment: Factory-assembled, pre-wired, rapid deployment in a single day
Connectivity: Compatible with remote monitoring systems (RDU-M), supports centralized management
Ideal for: Small data centers, branch offices, edge computing, industrial environments with harsh conditions

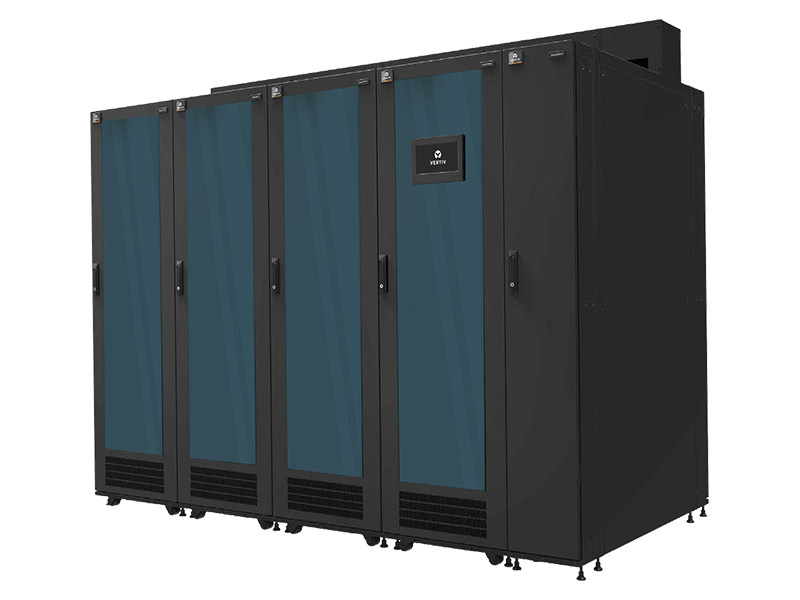

Type: Single-phase online double conversion UPS with integrated edge data center infrastructure
Capacity: 10 to 20 kW (configurable with 2 to 5 racks, each supporting 3.3 to 6.6 kW)
Form Factor: Fully enclosed 42U rack cabinet system with hot/cold aisle containment
Key Features:
High-efficiency cooling: In-row precision cooling with capacity modulation; reduces energy use and CO₂ emissions by up to 30%
Integrated power protection: Online double-conversion UPS with unity power factor and external maintenance bypass
Environmental monitoring: 6-point temperature and humidity sensors per rack; emergency ventilation fans
Centralized management: 9-inch touchscreen HMI, remote access via IP, SMS/email alerts, and alarm history logs
Security features: Electronic door locks with RFID and IP access, optional surveillance cameras
Optional fire suppression: Integrated inert gas system (IG-55) avoids costly room upgrades
Rapid deployment: Pre-engineered, room-neutral design installs in 3–5 days; saves up to 30% on deployment costs
Ideal for: Edge computing, banking, healthcare, retail, government, and colocation environments

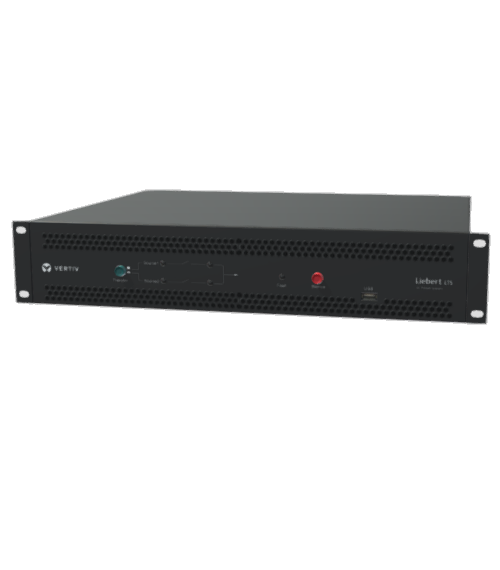

Type: Automatic Transfer Switch (ATS)
Capacity: 10A, 16A, 32A
Form Factor: 1U rack mount
Key Features:
Fast switching between two power sources (<6 ms typical)
High efficiency (up to 99%)
8 output sockets (4 × C13, 4 × C19)
Optional SNMP for remote monitoring
Compact and reliable for critical IT loads

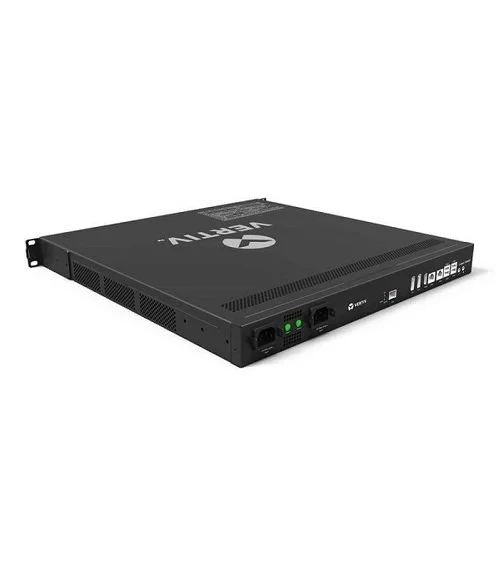

Type: Intelligent Infrastructure Gateway Appliance
Function: Centralized monitoring and control of data center equipment
Form Factor: Rack-mountable (Height: 43.5 mm, Width: 440 mm, Depth: 455 mm)
Key Features:
Device Monitoring: Supports up to 64 devices (UPS, cooling units, generators, etc.) via SNMP and Modbus
Sensor Integration: Up to 80 environmental sensors (temperature, humidity, smoke, leak, etc.)
Out-of-Band Management: Secure access to server service processors and serial consoles
Web Interface: Built-in web server for remote access and control
Expansion Options: Supports digital/analog I/O cards for extended monitoring and control
Video Surveillance: Connects up to 4 IP cameras via NVR
Environmental Tolerance: Operates from 0°C to 60°C, humidity 5–95% RH, IP20 protection
