ITE-100R
ITE Module, 100 racks
Rack power density from 5kW
Key Features:
High-Density Rack Capacity: The module is equipped with 100 x 42RU server racks, providing substantial space for IT equipment in a medium-density configuration.

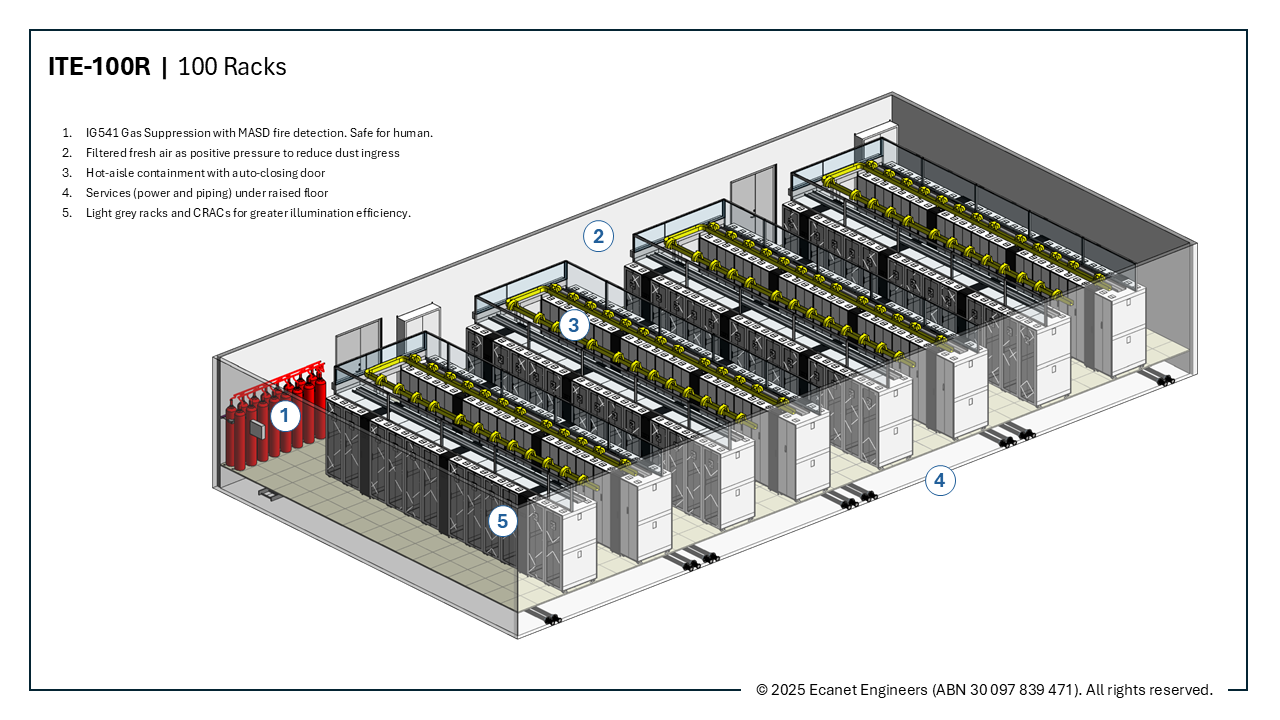

Efficient Hot-Aisle Containment Cooling: It features a hot-aisle containment system with In-Row Chilled Water (CRAH) units that directly remove heat, maximizing cooling efficiency and contributing to an estimated PUE of 1.4.
Robust, Prefabricated Enclosure: The module is a structurally engineered steel frame building with fire-rated walls and a 600mm raised floor, designed for deployment both indoors and outdoors.
Comprehensive Fire Protection: It includes a full IG-541 gas suppression system with aspirated smoke detection for rapid and safe fire suppression without damaging electronic equipment.
Integrated Power & Monitoring: Each server rack includes dual smart PDUs for power distribution with metering and monitoring, supported by environmental sensors for rack-level temperature and humidity.
