Key Features:

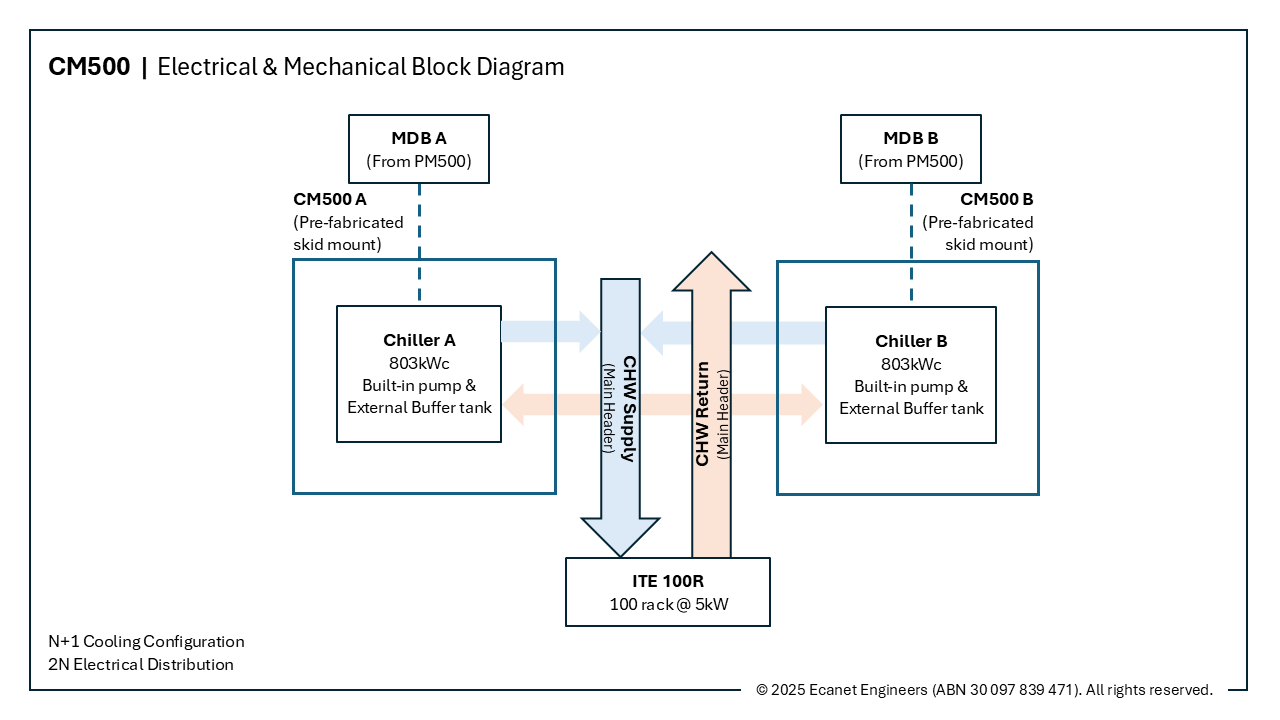

CM500: 803kW cooling capacity in N+1 configuration for high reliability.
Uptime Institute Tier III compliant cooling design.
Prefabricated skid-mounted module for fast outdoor deployment.
Vertiv adiabatic free cooling chillers with integrated pumps and buffer tank.
Energy-efficient design with adiabatic free cooling to reduce power usage.
Comprehensive monitoring system for equipment parameters, water loop temperature, power usage, alarms, and reporting.
Built to Australian Standards and designed for 15-year life with C5M paint system.
Fully assembled with piping, valving, pumps, and mechanical services board for plug-and-play installation.

Power Module, 500kW
