AIO120-24R

All-In-One 120kW, 24 racks @ 5kW

with 24 hours generator backup, 10 min battery autonomy

Key Features:

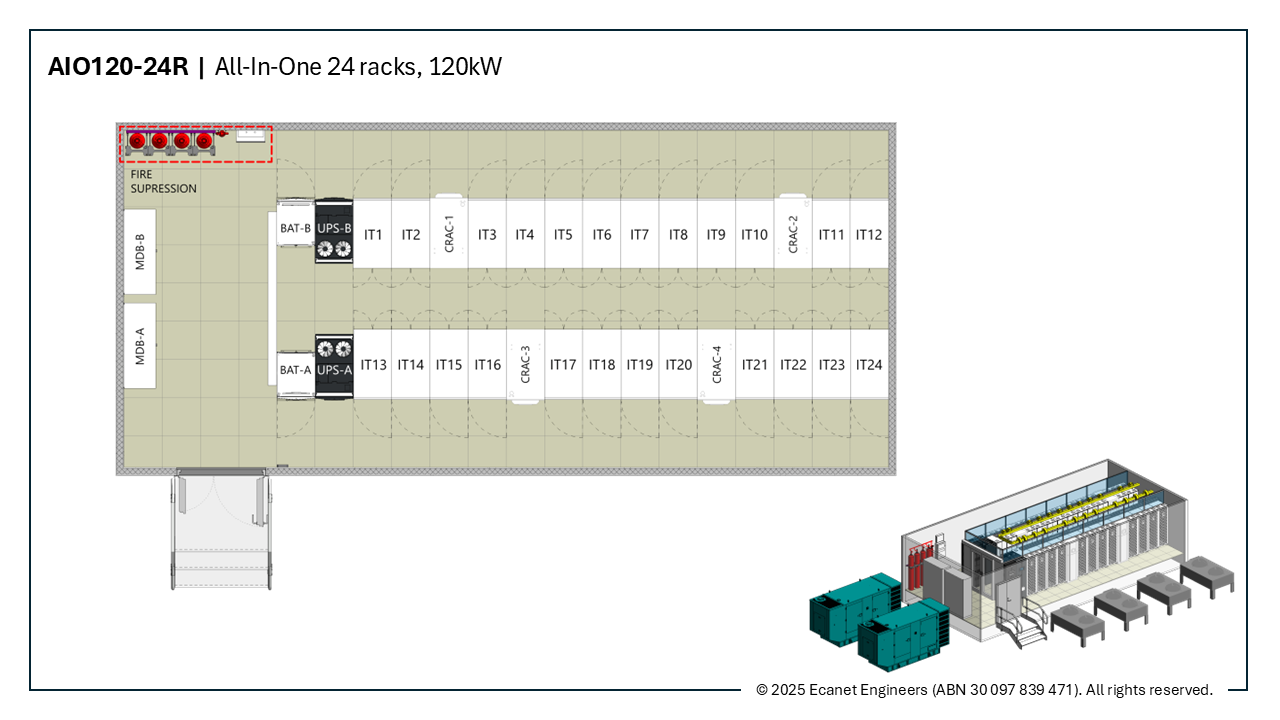

  • All-in-One Solution: 24 racks in a secure, self-contained module, deployable indoors or outdoors.

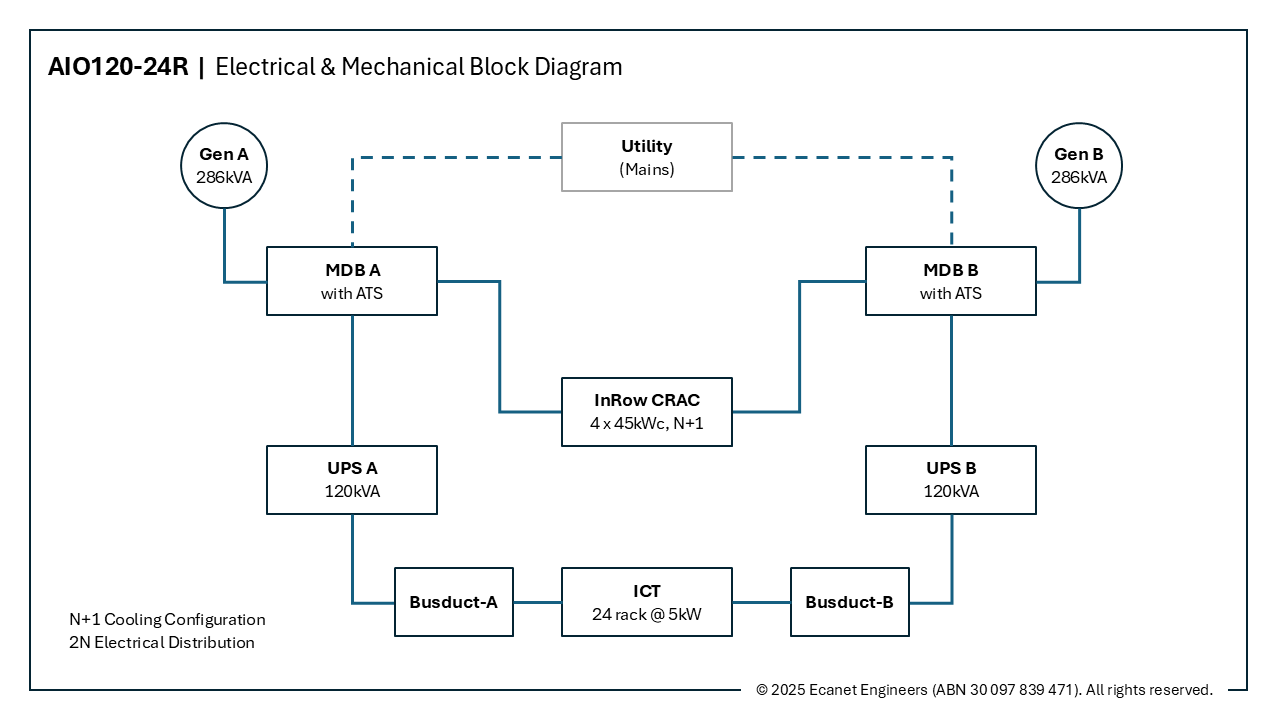

  • High Resilience: 2N redundant power (UPS & generators) and N+1 cooling for Tier III-level availability.

  • Energy Efficient: In-row cooling with hot-aisle containment targets a 1.4 PUE.

  • Enterprise Security: Integrated access control, surveillance, and designed to SCEC standards.

  • Comprehensive Monitoring: Cloud-based system for real-time oversight of power, cooling, and environmental conditions.
